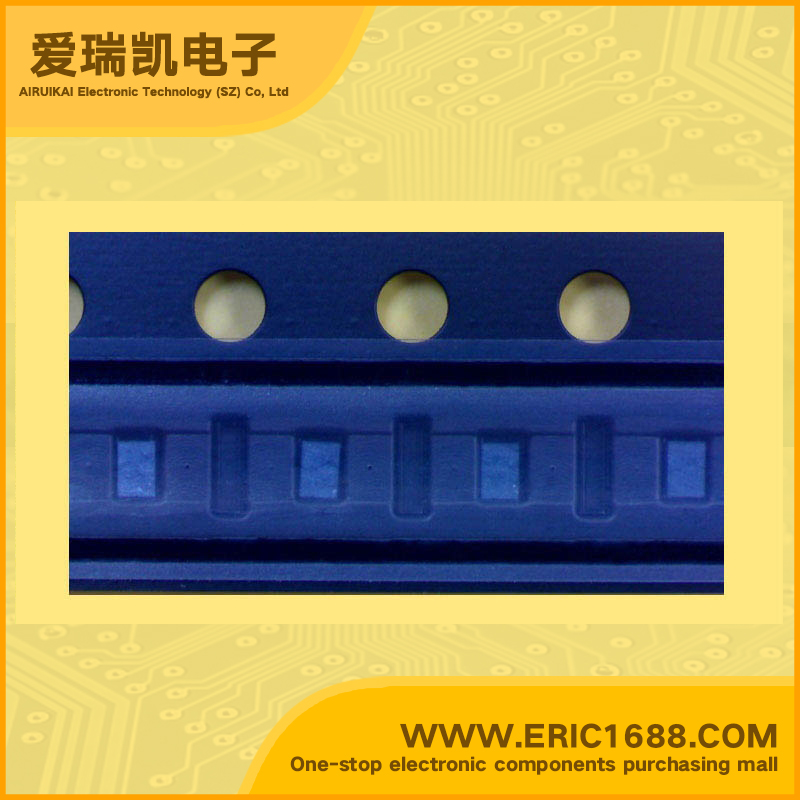

Integrated Circuit（IC） AND gate TC7SP308WBG WCSP6 marking h
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 4 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.1V~2.7V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | |
| 低逻辑电平 Logic Level - Low | |
| 高逻辑电平 Logic Level - High | |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | Dual supply 2-Input AND Gate with Level Translator ；• Level converter for interfacing 1.2-V to 1.8-V, 1.2-V to 2.5-V, 1.2-V to 3.3-V, 1.5-V to 2.5-V, 1.5-V to 3.3-V, 1.8-V to 2.5-V, 1.8-V to 3.3-V or 2.5 V to 3.3-V system. • High-speed operation : tpd = 6.8 ns (max) (VCCA = 2.5 ± 0.2 V, VCCB = 3.3 ± 0.3 V) tpd = 7.8 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 3.3 ± 0.3 V) tpd = 9.0 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 31 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 9.5 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 2.5 ± 0.2 V) tpd = 10.5 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 32 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 37 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 1.8 ± 0.15 V) • Output current : IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±9mA (min) (VCC = 2.3 V) IOH/IOL = ±3 mA (min) (VCC = 1.65 V) • Latch-up performance: -300 mA • ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V • Ultra-small package: WCSP6 • Power-down protection is provided on all inputs and outputs |
| 描述与应用 | 双电源2输入与门与电平转换器;•接口1.2-V，1.8 V，1.2-V到2.5 V，1.2-V到3.3 V，1.5 V，2.5 V，1.5 V至3.3 V，1.8 V的电平转换器 2.5 V，1.8 V至3.3 V或2.5 V至3.3 V系统。 •高速操作：TPD =6.8纳秒（最大）（VCCA=2.5±0.2 V VCCB=3.3±0.3 V） TPD =7.8纳秒（最大）（VCCA=1.8±0.15 V，VCCB=3.3±0.3 V） TPD =9.0 ns（最大）（VCCA=1.5±0.1 V VCCB=3.3±0.3 V） TPD =31 ns（最大）（VCCA=1.2±0.1 V VCCB=3.3±0.3 V） TPD =9.5纳秒（最大值）（VCCA=1.8±0.15 V，VCCB=2.5±0.2 V） TPD =10.5 ns（最大）（VCCA=1.5±0.1 V VCCB=2.5±0.2 V） TPD =32 ns（最大）（VCCA=1.2±0.1 V，VCCB=2.5±0.2 V） TPD =37 ns（最大）（VCCA=1.2±0.1 V VCCB=1.8±0.15 V） •输出电流：IOH/ IOL=±12 mA（分钟）（VCC=3.0 V） IOH/ IOL=±9毫安（分钟）（VCC=2.3 V） IOH/ IOL=±3 mA（分钟）（VCC= 1.65 V） •闭锁性能：-300毫安 •ESD性能：机器型号≥±200 V 人体模型≥±2000 V •超小封装：WCSP6 •掉电保护是对所有的输入和输出 |
