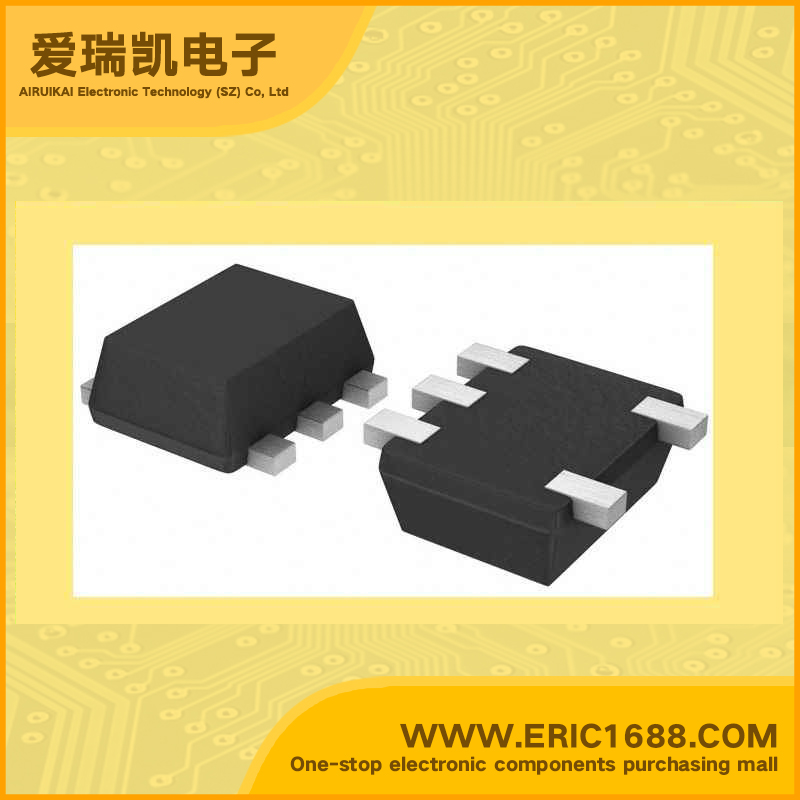

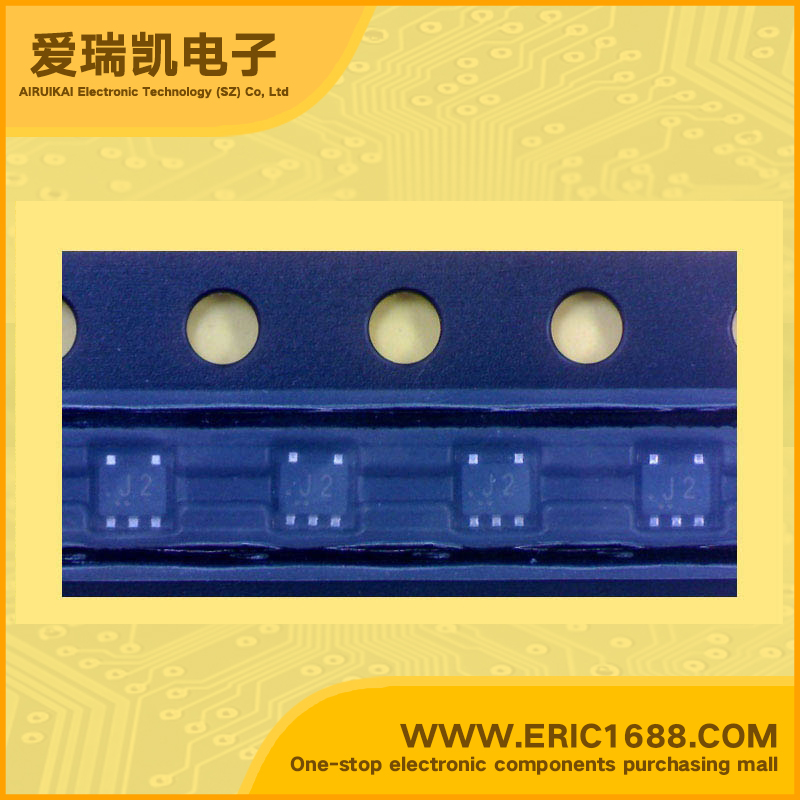

TC7SZ08FE Integrated Circuit (IC) Logic-Gate and Inverter IC GATE AND 1CH 2-INP ESV

Hot selling goods

Product description
逻辑类型
Logic Type
与门 AND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.8V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.12V~0.25v
高逻辑电平
Logic Level - High
0.75v~0.88v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4.5ns @ 4.5V~5.5V,50pF
Description & Applications 2-Input AND Gate ;High output current : ±24 mA (min) at VCC = 3 V • Super high speed operation : tpd = 2.7 ns (typ.) at VCC = 5 V, 50 pF • Operating voltage range : VCC = 1.8 to 5.5 V • 5.5-V tolerant inputs • 5.5-V power down protection output • Matches the performance of TC74LCX series when operated at 3.3-V VCC
描述与应用 2输入与门;高输出电流:±24 mA(分钟)在VCC=3 V •超高速运转:TPD =2.7 ns(典型值) 在VCC = 5 V,50 pF的 •工作电压范围:VCC = 1.8至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC
