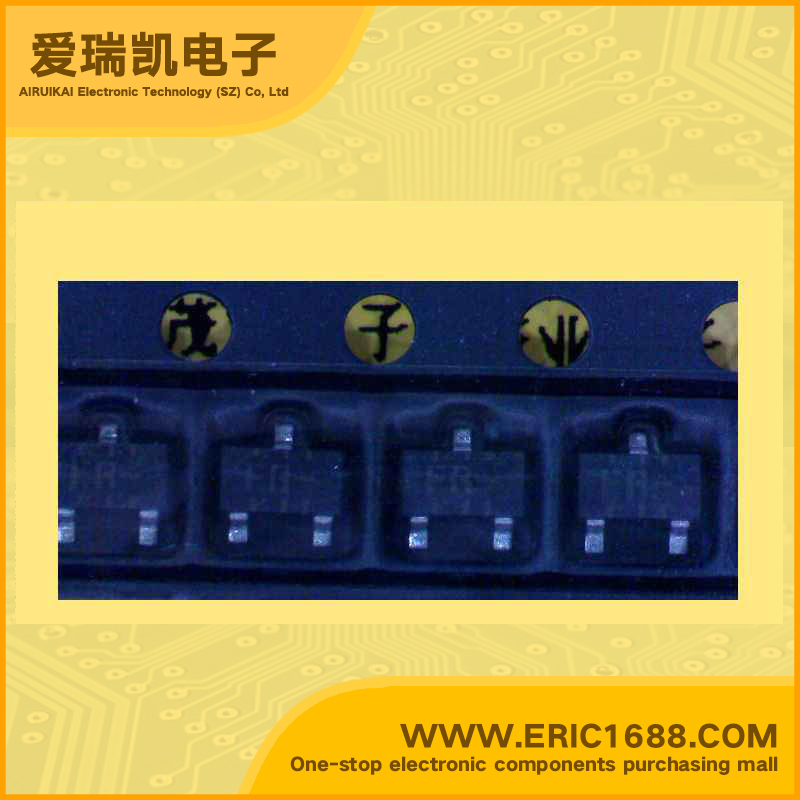

2SC5772fr NPN Transistors(BJT) 15V 75mA 9Ghz 80~160 SOT-23/SC-59/MPAK marking FR UHF/VHF wide band amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
9V
集电极连续输出电流IC
Collector Current(IC)
75mA
截止频率fT
Transtion Frequency(fT)
9Ghz
直流电流增益hFE
DC Current Gain(hFE)
80~160
管压降VCE(sat)
Collector-Emitter Saturation Voltage
耗散功率Pc
Power Dissipation
700mW/0.7W
Description & ApplicationsSilicon NPN Epitaxial UHF / VHF wide band amplifier Features • High gain bandwidth product fT = 9 GHz typ. • High power gain and low noise figure ; PG = 13 dB typ., NF = 1.1 dB typ. at f = 900 MHz
描述与应用NPN硅外延 UHF/ VHF宽频带放大器 特点 •高增益带宽积 FT =9 GHz的典型。 •高功率增益和低噪声系数; PG=13dB,NF= 1.1 dB。在f =900 MHz的
