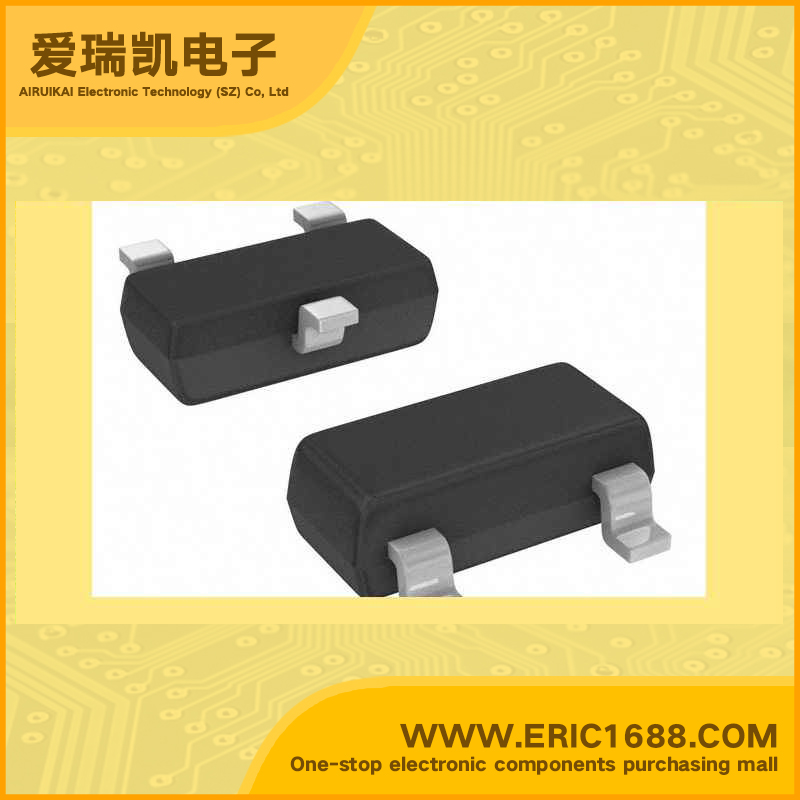

CPH3317 MOSFET P-Channel -20V -1A 0.36ohm SOT-23 marking JS ultra high-speed switch 2.5V drive

Model：CPH3317
Mark / screen / code / typing：JS
Manufacturer：
Date Code：05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	10V
最大漏极电流Id Drain Current	-1A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.36Ω @-500mA,-4V
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.4--1.4V
耗散功率Pd Power Dissipation	900mW/0.9W
Description & Applications	Features Low ON resistance. Ultrahigh-speed switching. 2.5V drive.
描述与应用	低导通电阻。超高速开关。 2.5V驱动器
