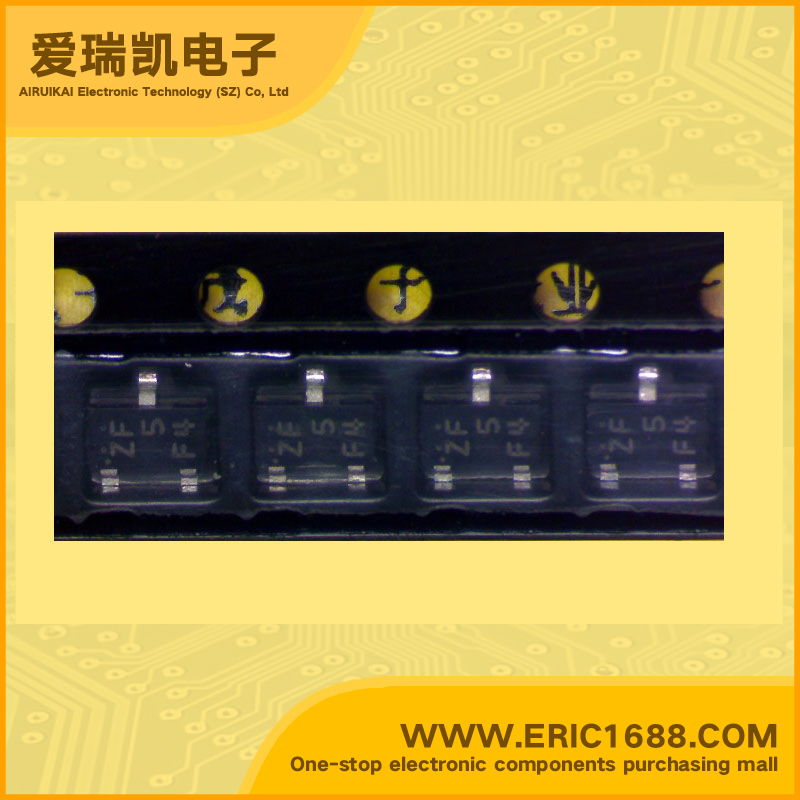

CPH3430 MOSFET N-Channel 60V 2A SOT-23/SC-59 marking ZF fast switch/no secondary breakdown

Model：CPH3430
Mark / screen / code / typing：ZF
Manufacturer：
Date Code：05NOPB
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	60V
最大栅源极电压Vgs(±) Gate-Source Voltage	10v
最大漏极电流Id Drain Current	2A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance	0.22Ω/Ohm @1A,4V
开启电压Vgs（th） Gate-Source Threshold Voltage	0.4-1.3V
耗散功率Pd Power Dissipation	1W
Description & Applications	N-Channel Silicon MOSFET General-Purpose Switching Device Applications • Low ON-resistance. • Ultrahigh-speed switching. • 4V drive.
描述与应用	N-沟道硅MOSFET 通用开关设备应用 •低导通电阻。 •超高速开关。 •4V驱动器。
