CPH5504 NPN+NPN Complex Bipolar Transistor 100V 3A HEF=200~560 SOT-153/CPH5/SC-74A marking ED switch and digital circuit application

Model：CPH5504

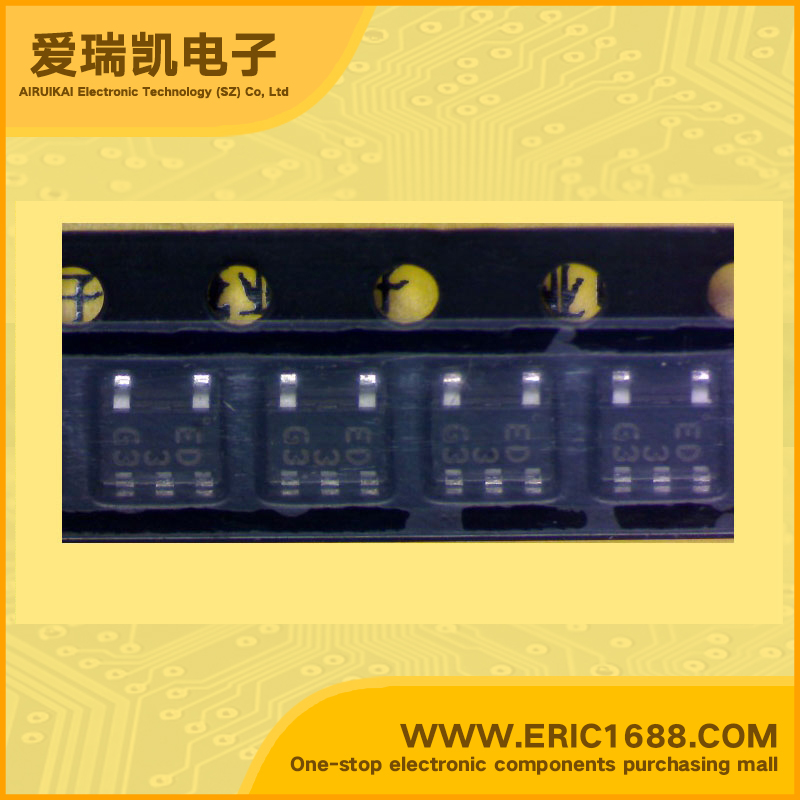

Mark / screen / code / typing：ED
Manufacturer：
Date Code：05+
Package：SOT-153/CPH5/SC-74A
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	100V
V(BR) CEO Collector-Emitter Voltage	100V
Collector Current(IC)	3A
Transtion Frequency(fT)	380MHZ
DC Current Gain(hFE)	200~560
VCE (sat) Collector-Emitter Saturation Voltage	0.21V
Power Dissipation （Pd）	0.9W
Description & Applications	NPN Epitaxial Planar Silicon Transistors• High-Current Switching ApplicationsApplications• DC-DC converter, relay drivers, lamp drivers, motor drivers, flash
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
CPH5506 NPN+PNP Complex Bipolar Transistor 40V 1.5A HEF=200~560 SOT-153/CPH5/SC-74A marking EF switch and digital circuit application	CPH5506 Mark：EF Package：SOT-153/CPH5/SC-74A	-	Batch number：05+	470 Min Order:10
CPH5517 PNP+NPN Complex Bipolar Transistor SOT-153/CPH5/SC-74A marking EM switch and digital circuit application	CPH5517 Mark：EM Package：SOT-153/CPH5/SC-74A	-	Batch number：05NOPB 05+NOPB	0 Min Order:10
CPH5608 Complex FET 100V 400mA/0.4A SOT-153/SOT23-5/CPH5 marking FH ultra high-speed switch 2.5V drive	CPH5608 Mark：FH Package：SOT-153/SOT23-5/CPH5	-	Batch number：05+ 05+	3020 Min Order:10
CPH5611 Complex FET 20V 3A SOT-153/SOT23-5/CPH5 marking FR ultra high-speed switch 2.5V drive	CPH5611 Mark：FR Package：SOT-153/SOT23-5/CPH5	-	Batch number：05+ 05+	7200 Min Order:10
CPH5612 Complex FET 100V 10A SOT-153/SOT23-5/CPH5 ultra high-speed switch 2.5V drive	CPH5612 Mark： Package：SOT-153/SOT23-5/CPH5	-	Batch number：05+NOPB	0 Min Order:10
CPH5701 Complex Bipolar Transistor+doides -3A 15V SOT-153 marking PA	CPH5701 Mark：PA Package：SOT-153	-	Batch number：05+	200 Min Order:10
CPH5702 Complex Bipolar Transistor+doides 3A 30V SOT-153 marking PB	CPH5702 Mark：PB Package：SOT-153	-	Batch number：05+	600 Min Order:10
