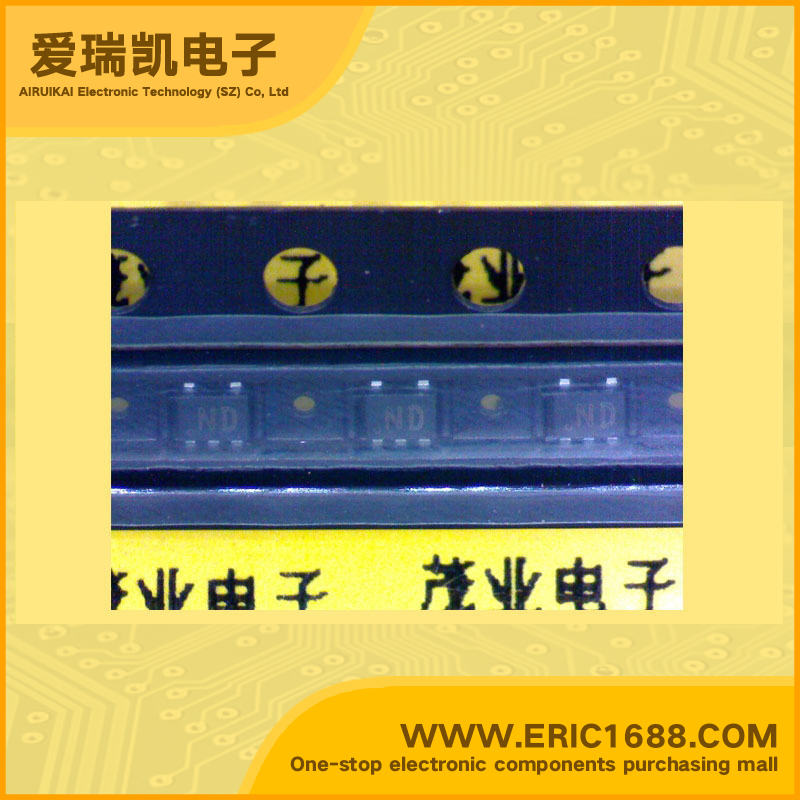

KRC654E NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 0.2W R1=47KΩ R2=47KΩ 200MHZ SOT-553/TESV marking MD switching inverting interface driver circuit

Model：KRC654E
Mark / screen / code / typing：MD
Manufacturer：
Date Code：06NOPB 05+NOPB3K
Package：SOT-553/TESV
Standard Package：4000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	50V
V(BR) CEO Collector-Emitter Voltage	50V
Collector Current(IC)	0.1A
Input Resistance(R1)	47KΩ
Base-Emitter Resistance(R2)	47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	1
DC Current Gain(hFE)
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	EPITAXIAL PLANAR NPN TRANSISTOR SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. FEATURES * With Built-in Bias Resistors. * Simplify Circuit Design. * Reduce a Quantity of Parts and Manufacturing Process. * High Packing Density.
Technical Documentation Download	Read Online
