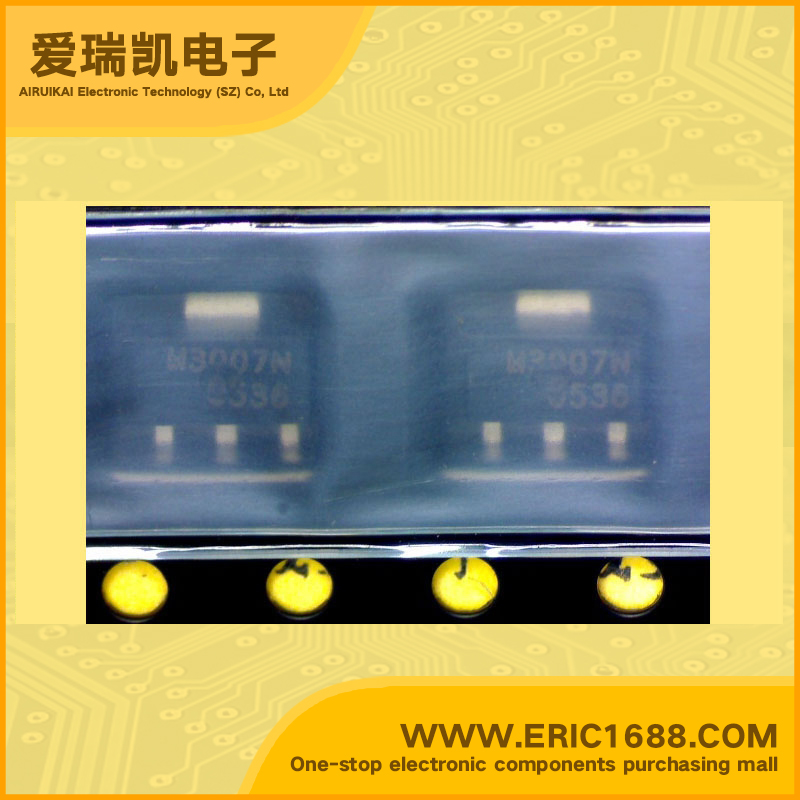

RF amplifier MMG3007NT1 SOT-89 marking MMG3007N
| 频率 Frequency | 0Hz~6GHz |
| P1dB | 16dBm |
| 增益 Gain | 19dB |
| 噪声系数 Noise Figure | 3.8dB |
| RF 类型 RF Type | 手机，PCS，PHS，WLL Cellular, PCS, PHS, WLL |
| 电源电压 Voltage - Supply | 5V |
| 电源电流 Current - Supply | 47mA |
| 测试频率 Test Frequency | 900MHz |
| Description & Applications | FEATURES • Frequency: 0 to 6000 MHz • P1dB: 16 dBm @ 900 MHz • Small-Signal Gain: 19 dB @ 900 MHz • Third Order Output Intercept Point: 30 dBm @ 900 MHz • Single 5 Volt Supply • Internally Matched to 50 Ohms • Low Cost SOT-89 Surface Mount Package • RoHS Compliant • In Tape and Reel. T1 Suffix = 1000 Units per 12 mm, 7 inch Reel |
| 描述与应用 | 特点 •频率：0〜6000兆赫 •的P1dB：16 dBm的@900兆赫 •小信号增益：19分贝@900兆赫 •三阶输出截取点：30 dBm的@900兆赫 •单5伏电源 •内部匹配到50欧姆 •低成本SOT-89表面贴装封装 •符合RoHS标准 •在磁带和卷轴。 T1后缀= 1000单位每12 mm，7英寸卷筒 |
