PBSS2515VS NPN+NPN Complex Bipolar Transistor 15V 500mA 420MHZ HEF=90~200 SOT-563/SOT666 marking 6n switch and digital circuit application

Model：PBSS2515VS

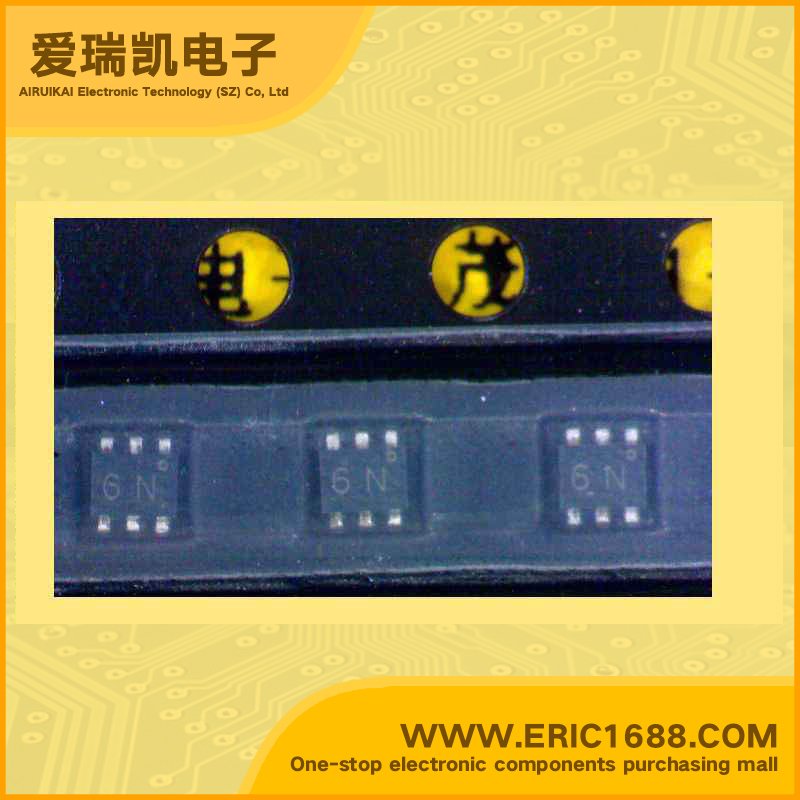

Mark / screen / code / typing：6n
Manufacturer：
Date Code：05+ 04+
Package：SOT-563/SOT666
Standard Package：4000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	15V
V(BR) CEO Collector-Emitter Voltage	15V
Collector Current(IC)	500MA/0.5A
Transtion Frequency(fT)	420MHZ
DC Current Gain(hFE)	90~200
VCE (sat) Collector-Emitter Saturation Voltage	0.25V
Power Dissipation （Pd）	0.3W
Description & Applications	15 V low VCE(sat) NPN double transistor • General purpose switching and muting • Low frequency driver circuits • LCD backlighting • Audio frequency general purpose amplifier applications • Battery driven equipment (mobile phones, video cameras and hand-held devices).
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
PBSS2540F NPN Transistors(BJT) 40V 500mA/0.5A 450MHz 100 50mV~200mV SOT-523 marking 2C	PBSS2540F Mark：2C Package：SOT-523	-	Batch number：05+ 05+	76000 Min Order:10
PBSS3515F PNP transistors（BJT） -15V -250mA/-0.25A 280MHz 200 -250mV/-0.25V SOT-523/SC-75 marking ZB DC-DC converter/backlight inverter	PBSS3515F Mark：2B Package：SOT-523/SC-75	-	Batch number：01+ 05+	200000 Min Order:10
PBSS3515VS PNP+PNP Complex Bipolar Transistor -15V -500mA 280MHZ HEF=90~200 SOT-363/SC-88 marking 35 switch and digital circuit application	PBSS3515VS Mark：35 Package：SOT-363/SC-88	-	Batch number：05+NOPB10K 05+NOPB10K	15000 Min Order:10
PBSS4140DPN NPN+PNP Complex Bipolar Transistor 40V/-40V 1A/-1A 300~900 SOT-163/SC-74/SOT457/SOT23-6 marking M2 switch and digital circuit application	PBSS4140DPN Mark：M2 Package：SOT-163/SC-74/SOT457/SOT23-6	-	Batch number：05+	0 Min Order:10
PBSS4140T NPN Transistors(BJT) 40V 1A 150MHz 900 200mV~500mV SOT-23/SC-59 marking ZT	PBSS4140T Mark：ZT Package：SOT-23/SC-59	-	Batch number：05+NOPB1500 05+NOPB1500	2680 Min Order:10
PBSS4240T NPN Transistors(BJT) 40V 2A 230MHz 470 70mV~320mV SOT-23/SC-59 marking ZEp	PBSS4240T Mark：ZEp Package：SOT-23/SC-59	-	Batch number：05+ 05+	5480 Min Order:10
PBSS4240T NPN Transistors(BJT) 40V 2A 230MHz 470 70mV~320mV SOT-23/SC-59 marking ZE	PBSS4240T Mark：ZE Package：SOT-23/SC-59	-	Batch number：NOPB	0 Min Order:10
