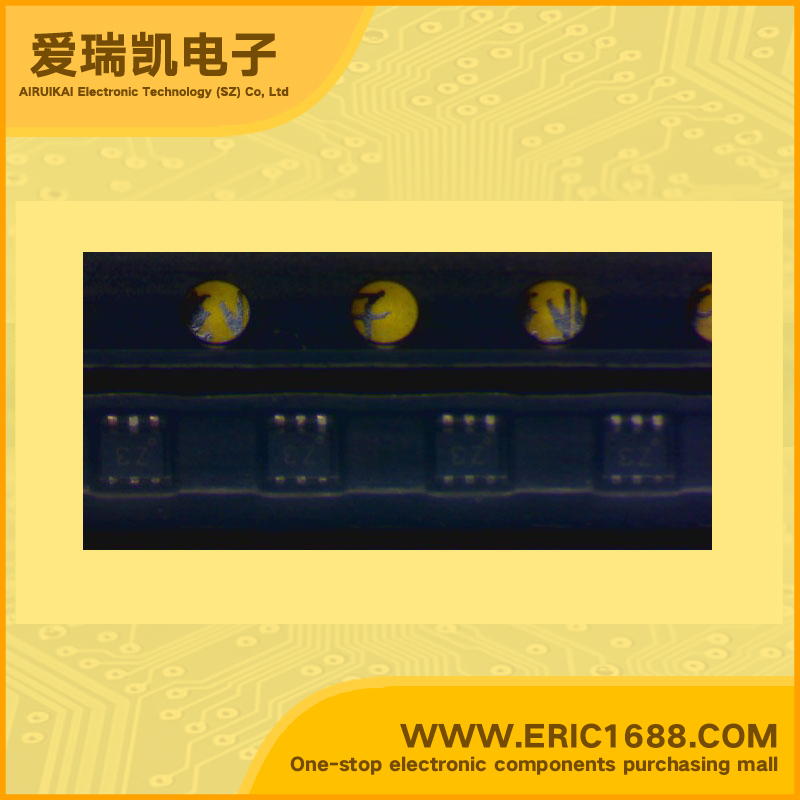

PEMB3 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A HEF=200 0.2W R1=4.7KΩ SOT-563/SOT666 marking Z3 switching inverting interface driver circuit
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -100MA |
| Input Resistance(R1) | 4.7 kΩ |
| Base-Emitter Resistance(R2) | |
| Base-Emitter Input Resistance Ratio (R1/R2) | |
| DC Current Gain(hFE) | |
| Transtion Frequency(fT) | |
| Power Dissipation （Pd） | 0.2W |
| Description & Applications | • Built-in bias resistors
• Simplified circuit design
• Reduction of component count
• Reduced pick and place costs.
Low current peripheral drivers
• Replacement of general purpose transistors in digital applications
• Control of IC inputs.
|
