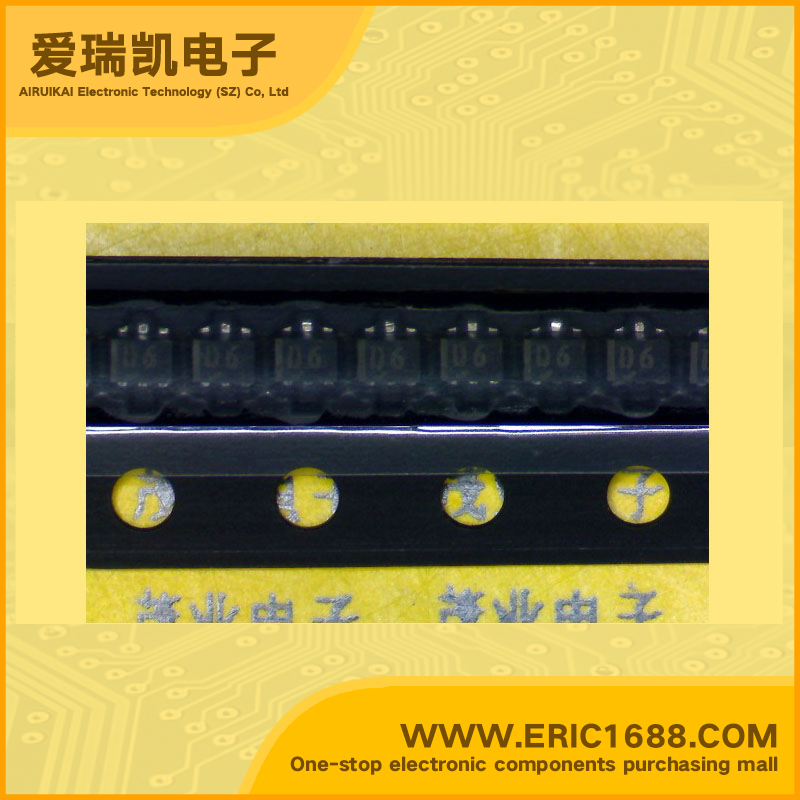

PEMD6 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 200 300mW/0.3W SOT-563/SOT666 marking D6 switching inverting interface driver circuit

Hot selling goods

Product description
Collector-Base Voltage(VCBO) Q1/Q2 50V/-50V
Collector-Emitter Voltage(VCEO) Q1/Q2 50V/-50V
Collector Current(IC) Q1/Q2 100mA/-100mA
Q1 Input Resistance(R1) 4.7KΩ/Ohm
Q1Base-Emitter Resistance(R2)
Q1(R1/R2) Q1 Resistance Ratio
Q2 Input Resistance(R1) 4.7KΩ/Ohm
Q2 Base-Emitter Resistance(R2)
Q2(R1/R2) Q2 Resistance Ratio
 DC Current Gain(hFE) Q1/Q2 200/200
Transtion Frequency(fT) Q1/Q2
 Power Dissipation Q1/Q2 300mW/0.3W
Description & Applications Features • PNP/PNP resistor-equipped transistors; • 300 mW total power dissipation • Very small 1.6 × 1.2 mm ultra thin package • Self alignment during soldering due to straight leads • Replaces two SC-75/SC-89 packaged transistors on same PCB area • Reduces required PCB area • Reduced pick and place costs. APPLICATIONS • General purpose switching and amplification • Inverter and interface circuits • Circuit driver.
描述与应用 特点 •PNP / PNP电阻配备晶体管; •300 mW的总功耗 •非常小的1.6×1.2毫米的超薄封装 •自对准直引线在焊接过程中,由于 •替换两个SC-75/SC-89封装晶体管 相同的PCB面积 •减少所需PCB面积 •减少取放成本。 应用 •通用开关和放大 •逆变器和接口电路 •电路驱动。
