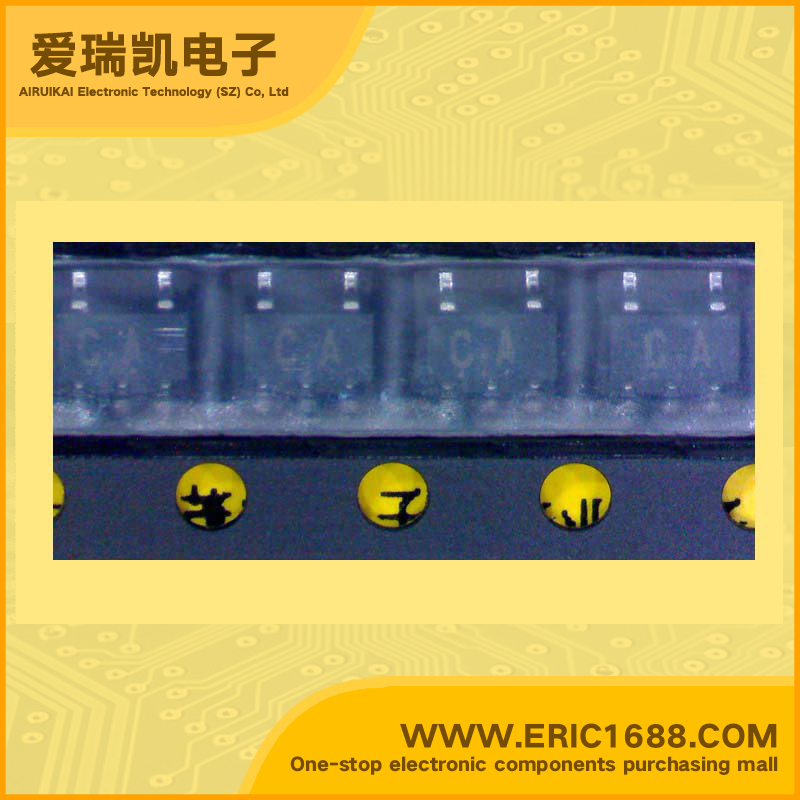

Integrated Circuit（IC） Inverting Schmitt trigger TC4S584F SOT-153/SMV marking CA

Hot selling goods

Product description
逻辑类型
Logic Type		反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits		1
输入数
Number of Inputs		1
电源电压Vcc
Voltage - Supply		3v~18v
静态电流Iq
Current - Quiescent (Max)		4µA
输出高，低电平电流
Current - Output High, Low		-3.4mA,3.4mA
低逻辑电平
Logic Level - Low		1.1V~3.3V
高逻辑电平
Logic Level - High		3.35V~10.6V
传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL		120ns @ 15V，50pF
Description & ApplicationsTC4S584F is the one circuit inverter having the schmitt trigger function at the input terminal
描述与应用TC4S584F是一个电路的反相器，在输入端子，具有施密特触发功能
