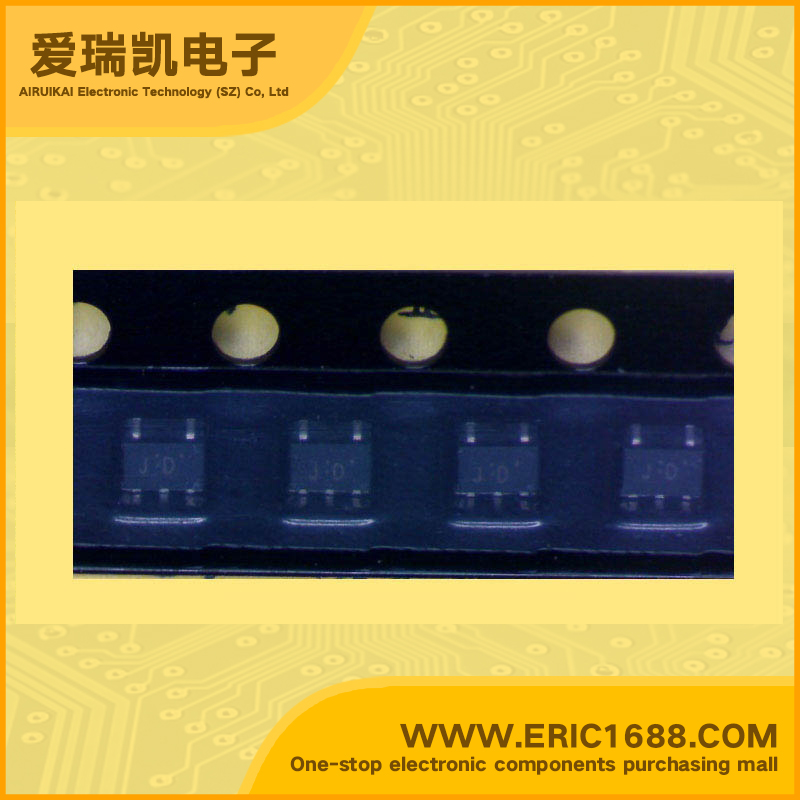

Integrated Circuit（IC） NAND gate TC7SZ38FU SOT-353/USV marking JD
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.8v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -24mA,24mA |
| 低逻辑电平 Logic Level - Low | 0.12v~0.25v |
| 高逻辑电平 Logic Level - High | 0.75v~0.88v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.2ns @ 5V，50pF |
| Description & Applications | 2-Input NAND Gate(Open Drain Output) ；High output drive: 24 mA (min) @VCC = 3 V • Super high speed operation: tpz = 2.2 ns(typ.)@VCC = 5 V, 50 pF • Operation voltage range: VCC (opr) = 1.80~5.5 V • 5.5V tolerant inputs. • Power down protection is provided on output. • Matches the performance of TC74LCX series when operated at 3.3 V VCC. |
| 描述与应用 | 2输入与非门（漏极开路输出）;高输出电流：±24 mA（分钟）在VCC=3 V •超高速运转：TPD =2.4 ns（典型值） 在VCC = 5 V，50 pF的 •工作电压范围：VCC = 1.8至5.5 V •5.5-V宽容输入 •5.5-V断电保护输出 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC |
