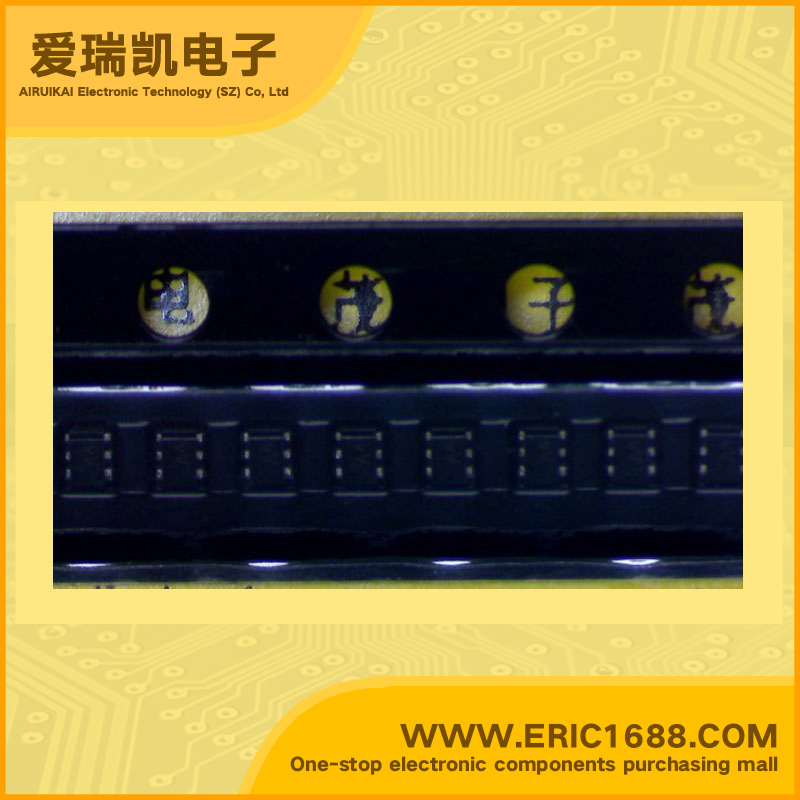

UPA860TD NPN+NPN Complex Bipolar Transistor 9V 30mA/35mA 75~150/50~100 SOT-763 marking VV switch and digital circuit application

Model：UPA860TD
Mark / screen / code / typing：VV
Manufacturer：
Date Code：05+
Package：SOT-763
Standard Package：10000
Min Order：100

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	Q1/Q2=9V / 9V
V(BR) CEO Collector-Emitter Voltage	Q1/Q2=6V / 3V
Collector Current(IC)	Q1/Q2=30MA /35MA
Transtion Frequency(fT)	Q1/Q2=12GHZ / 20GHZ
DC Current Gain(hFE)	Q1/Q2=75~150 / 50~100
VCE (sat) Collector-Emitter Saturation Voltage
Power Dissipation （Pd）	210MW
Description & Applications	NPN SILICON RF TRANSISTOR 2 different built-in transistors (2SC5435, 2SC5786)
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
UPA862T NPN+NPN Complex Bipolar Transistor 9V 30mA/100mA 110/112 SOT-563 marking VY switch and digital circuit application	UPA862T Mark：VY Package：SOT-563	-	Batch number：05+	0 Min Order:10
UPA862TD NPN+NPN Complex Bipolar Transistor 9V 30mA/100mA 110/112 SOT-763 marking Y switch and digital circuit application	UPA862TD Mark：Y Package：SOT-763	-	Batch number：05+	1800 Min Order:100
UPA862TS NPN+NPN Complex Bipolar Transistor 9V 30mA/100mA 110/112 SOT-963 marking VY switch and digital circuit application	UPA862TS Mark：VY Package：SOT-963	-	Batch number：05+	2400 Min Order:100
UPA863TS NPN+NPN Complex Bipolar Transistor 5V/9V 30mA/100mA 110/112 SOT-963 marking XC switch and digital circuit application	UPA863TS Mark：XC Package：SOT-963	-	Batch number：05+	650 Min Order:100
UPA869TD NPN+NPN Complex Bipolar Transistor 13V 40mA/100mA 180/120 SOT-763 marking KJ switch and digital circuit application	UPA869TD Mark：KJ Package：SOT-763	-	Batch number：05+	1800 Min Order:100
UPA891TD NPN+NPN Complex Bipolar Transistor 9V 100mA 120 SOT-763 marking H switch and digital circuit application	UPA891TD Mark：H Package：SOT-763	-	Batch number：05+	4300 Min Order:100
UPA895T5M Complex Bipolar Transistor 9V 6.5GHZ HEF=100~145 0402-6脚 marking switch and digital circuit application	UPA895T5M Mark： Package：0402-6脚	-	Batch number：04+	80 Min Order:10
