XN4504 NPN+NPN Complex Bipolar Transistor 25V 500mA HEF=200~800 SOT-163/SC-74 marking 5X switch and digital circuit application

Model：XN4504

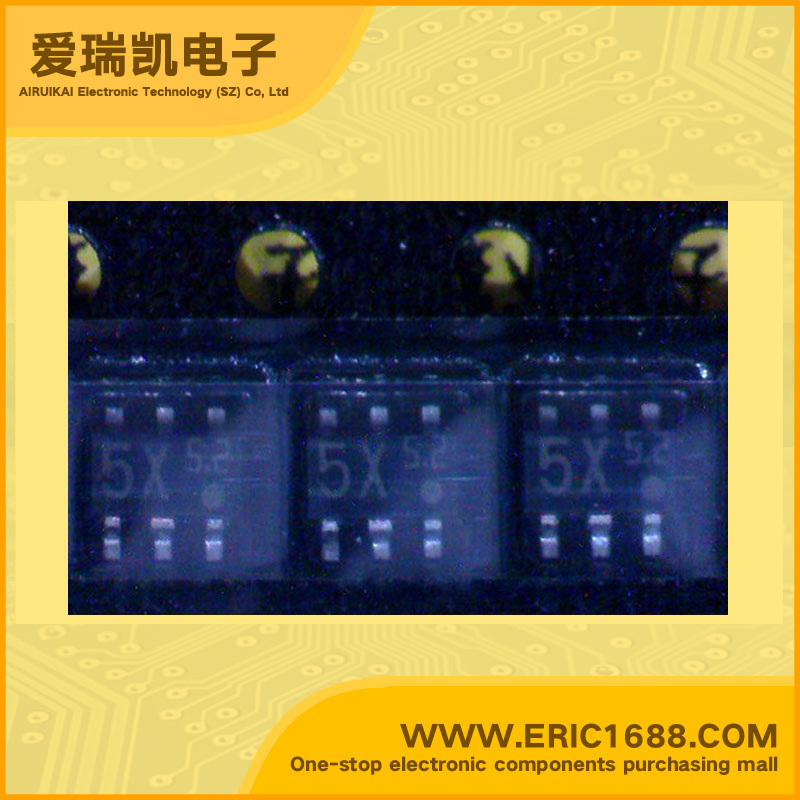

Mark / screen / code / typing：5X
Manufacturer：
Date Code：05+ 05+
Package：SOT-163/SC-74
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	25V
V(BR) CEO Collector-Emitter Voltage	20V
Collector Current(IC)	0.5A
Transtion Frequency(fT)	200~800
DC Current Gain(hFE)	200MHZ
VCE (sat) Collector-Emitter Saturation Voltage	0.4V
Power Dissipation （Pd）	300MW/0.3W
Description & Applications	Silicon NPN epitaxial planer transistor For amplification of low frequency output 2SD1328 × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XN4505 NPN+NPN Complex Bipolar Transistor 60V/25V 100mA/500mA 160~460/200~800 SOT-163/SC-74 marking DZ switch and digital circuit application	XN4505 Mark：DZ Package：SOT-163/SC-74	-	Batch number：00+	100 Min Order:10
XN4506 NPN+NPN Complex Bipolar Transistor 50V 300mA HEF=500~2500 SOT-163/SC-74 marking EN switch and digital circuit application	XN4506 Mark：EN Package：SOT-163/SC-74	-	Batch number：01+	200 Min Order:10
XN4601 NPN+PNP Complex Bipolar Transistor 60V/-60V 100mA/-100mA 160~460 SOT-163/SC-74 marking 5C switch and digital circuit application	XN4601 Mark：5C Package：SOT-163/SC-74	-	Batch number：06nopb 05+	0 Min Order:10
XN4604 NPN+PNP Complex Bipolar Transistor 25V/-15V 500mA/-500mA 200~800/100~350 SOT-163/SC-74 marking 5I switch and digital circuit application	XN4604 Mark：5I Package：SOT-163/SC-74	-	Batch number：05+ 00+	0 Min Order:10
XN4609 NPN+PNP Complex Bipolar Transistor 25V/-60V 500mA/-100mA 200~800/160~460 SOT-163/SC-74 marking 5F switch and digital circuit application	XN4609 Mark：5F Package：SOT-163/SC-74	-	Batch number：05+ 00+	50 Min Order:10
XN5501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-163/SC-74 marking 5L switch and digital circuit application	XN5501 Mark：5L Package：SOT-163/SC-74	-	Batch number：05+ 05+	17250 Min Order:10
XN5531 NPN+NPN Complex Bipolar Transistor 15V 50mA 200 SOT-163/SC-74 marking 5M switch and digital circuit application	XN5531 Mark：5M Package：SOT-163/SC-74	-	Batch number：03+	3000 Min Order:10
