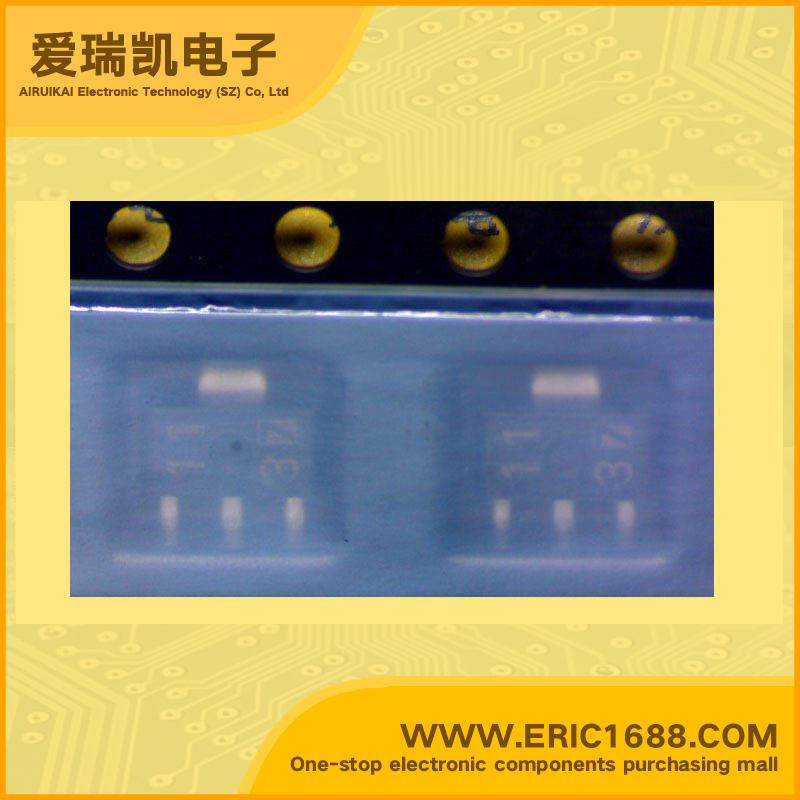

XP161A1355PR MOSFET N-Channel 20V 4A SOT-89 marking 11 fast switch/low on-resistance

Hot selling goods

Product description
最大源漏极电压Vds Drain-Source Voltage20V
最大栅源极电压Vgs(±) Gate-Source Voltage8V
最大漏极电流Id Drain Current4A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance0.050Ω/Ohm @2A,4.5V
开启电压Vgs(th) Gate-Source Threshold Voltage0.5-1.2V
耗散功率Pd Power Dissipation2W
Description & ApplicationsPower MOSFET ■GENERAL DESCRIPTION The XP161A11A1PR is an N-channel Power MOSFET with low on-state resistance and ultra high-speed switching characteristics. Because high-speed switching is possible, the IC can be efficiently set thereby saving energy. A gate protect diode is built-in to prevent static damage. The small SOT-89 package makes high density mounting possible. FEATURES Low On-State Resistance : Rds(on)=0.065Ω@ Vgs=10V Rds(on)=0.105Ω@ Vgs=4.5V Ultra High-Speed Switching Gate Protect Diode Built-in Driving Voltage : 4.5V N-Channel Power MOSFET DMOS Structure Small Package : SOT-89
描述与应用功率MOSFET ■概述 XP161A11A1PR是一个N沟道功率MOSFET具有低通态电阻和超高速开关特性。 由于高速开关是可能的,该IC可有效地设置从而节省能源。 栅极保护二极管是内置的,以防止静电损坏。 小SOT-89封装,使高密度安装的可能 低导通电阻的R(on)=0.065Ω@ VGS= 10V RDS(ON)=0.105Ω@ VGS= 4.5V 超高速开关 内置栅极保护二极管 驱动电压:4.5V N沟道功率MOSFET DMOS结构式 小封装:SOT-89
