XP4316 NPN+PNP Transistors with built-in resistor 50V 0.1A HEF=160~460 R1=4.7KΩ SOT-363/SC-88 marking 7U switch and digital circuit application

Model：XP4316

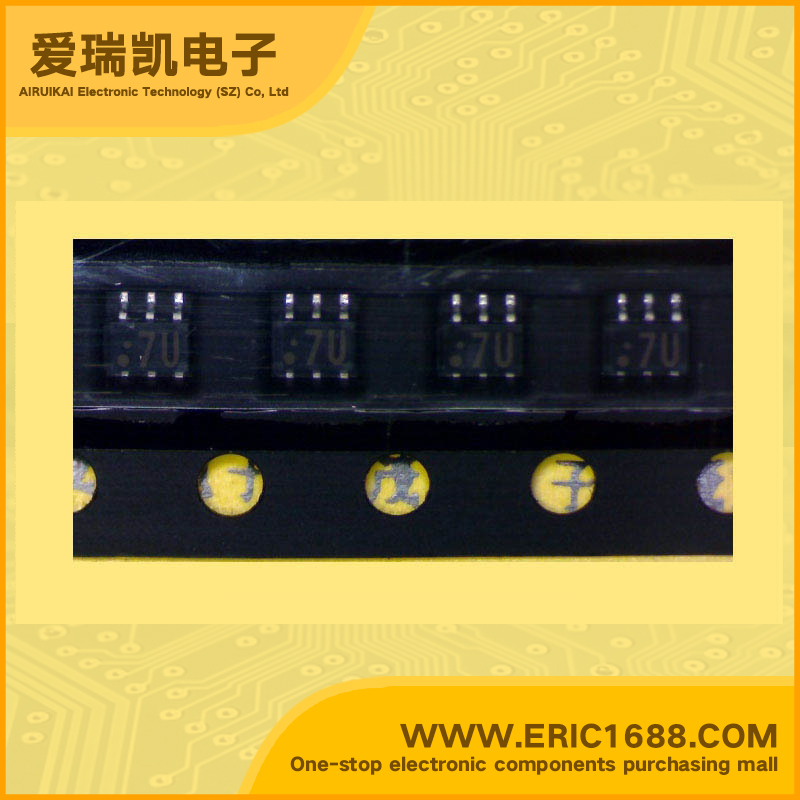

Mark / screen / code / typing：7U
Manufacturer：
Date Code：05+nopb5500 05+ROHS2K
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Q1 Collector-Base Voltage(VCBO)	50V
Q1Collector-Emitter Voltage(VCEO)	50V
Q1 Collector Current(IC)	100MA
Q2 Collector-Base Voltage(VCBO)	-50V
Q2Collector-Emitter Voltage(VCEO)	-50V
Q2Collector Current(IC)	-100MA/-0.1A
Q1 Input Resistance(R1)	4.7KΩ
Q1Base-Emitter Resistance(R2)
Q1(R1/R2) Q1 Resistance Ratio
Q2 Input Resistance(R1)	4.7KΩ
Q2Base-Emitter Resistance(R2)
Q2(R1/R2) Q2 Resistance Ratio
DC Current Gain(hFE) Q1/Q2	160~460 / 160~460
Transtion Frequency(fT) Q1/Q2	150MHZ / 80MHZ
Power Dissipation	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) Two elements incorporated into one package. (Transistors with built-in resistor) UNR1216(UN1216) + UNR1116(UN1116)
