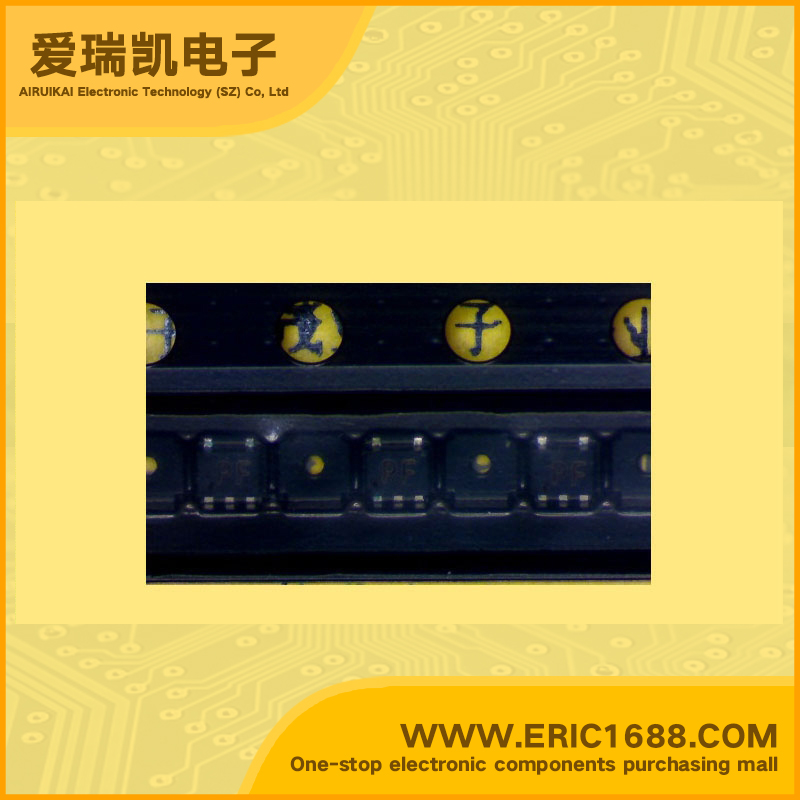

KRA556E PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=4.7KΩ R2=47KΩ SOT-553/TESV marking PF switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -100MA/-0.1A
 Input Resistance(R1)  4.7KΩ
Base-Emitter Resistance(R2)  47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  0.1
DC Current Gain(hFE)
Transtion Frequency(fT)  200MHZ
Power Dissipation (Pd)  0.2W
Description & Applications  EPITAXIAL PLANAR PNP TRANSISTOR
SWITCHING APPLICATION.
INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION.
FEATURES
·With Built-in Bias Resistors.
·Simplify Circuit Design.
·Reduce a Quantity of Parts and Manufacturing Process.
·High Packing Density.
