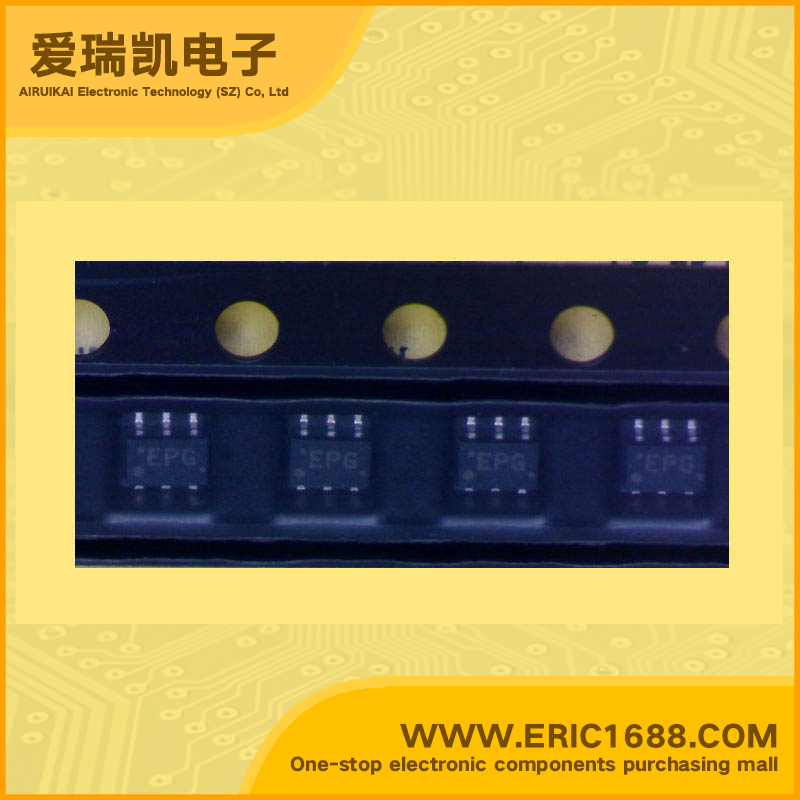

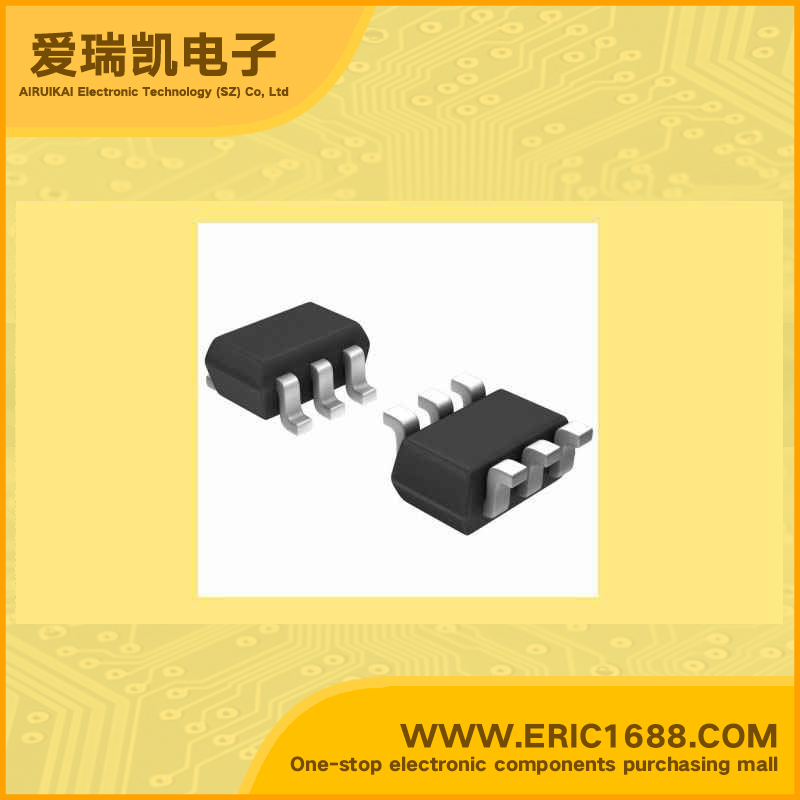

TC7SP57FU

Hot selling goods

Product description
逻辑类型
Logic Type
可配置多功能 Configurable Multiple Function
电路数
Number of Circuits
1
输入数
Number of Inputs
3
电源电压Vcc
Voltage - Supply
是 Yes
静态电流Iq
Current - Quiescent (Max)
单端 Single-Ended
输出高,低电平电流
Current - Output High, Low
8mA,8mA
低逻辑电平
Logic Level - Low
1.2V ~ 3.6 V
高逻辑电平
Logic Level - High
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic Low Voltage Single Configurable Multiple Function Gate with 3.6-V Tolerant Inputs and Outputs The TC7SP57,58 is a high performance CMOS multiple Function Gate which is guaranteed to operate from 1.2-V to 3.6-V. Designed for use in 1.5 V, 1.8 V, 2.5 V or 3.3 V systems, it achieves high speed operation while maintaining the CMOS low power dissipation. It is also designed with over voltage tolerant inputs and outputs up to 3.6 V. The output state is determined by seven patterns of 3-inputs. The user can choose the functions of XNOR(TC7SP57),XOR(TC7SP58), AND, OR, NAND,NOR, Schmitt Inverter, and Schmitt Buffer. All inputs are equipped with protection circuits against static discharge. Features • Low-voltage operation: VCC = 1.2 to 3.6 V • High-speed operation: tpd = 8.5 ns (max) (VCC = 3.0 to 3.6 V) tpd = 12.0 ns (max) (VCC = 2.3 to 2.7 V) • Output current: |IOH| / IOL = 8 mA (min) (VCC = 3.0 V) | IOH| / IOL = 4 mA (min) (VCC = 2.3 V) | IOH| / IOL = 1.5 mA (min) (VCC = 1.65 V) • Latch-up performance: −300 mA • ESD performance: Machine model > ±200 V Human body model > ±2000 V • Package: US6 • Power-down protection is provided on all inputs and outputs
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
东芝CMOS数字集成电路硅单片 低电压单可配置多功能门 3.6-V宽容输入和输出 TC7SP57,58是一种高性能CMOS多个 功能门这是保证从1.2-V至3.6 V的操作。 在1.5 V,1.8 V,2.5 V或3.3 V系统中使用而设计, 实现了高速操作,同时保持低功耗的CMOS。 它也设计有过电压宽容输入和输出为3.6 V。 输出状态,是由7个3输入模式。 用户可以选择功能异或非(TC7SP57)的异或(TC7SP58),AND,OR,NAND,NOR,施密特反相器,施密特缓冲器。 所有输入都配有保护电路防止静电放电。 低电压工作:VCC=1.2〜3.6 V •高速操作:TPD =8.5纳秒(最大值)(VCC=3.0至3.6 V) TPD =12.0纳秒(最大值)(VCC=2.3到2.7 V) •输出电流:IOH/ IOL= 8 mA(分钟)(VCC=3.0 V) IOH/ IOL=4 mA(分钟)(VCC=2.3 V) IOH/ IOL=1.5 mA(分钟)(VCC= 1.65 V) •闭锁性能:-300毫安 •ESD性能:机器型号>±200 V 人体模型>±2000 V •包装:US6 •掉电保护是对所有的输入和输出
Description & Applications
描述与应用
