RN2911 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120~400 R1=10KΩ 200mW/0.2W SOT-363/US6/SC70-6 marking YM switching inverting interface driver circuit

Model：RN2911

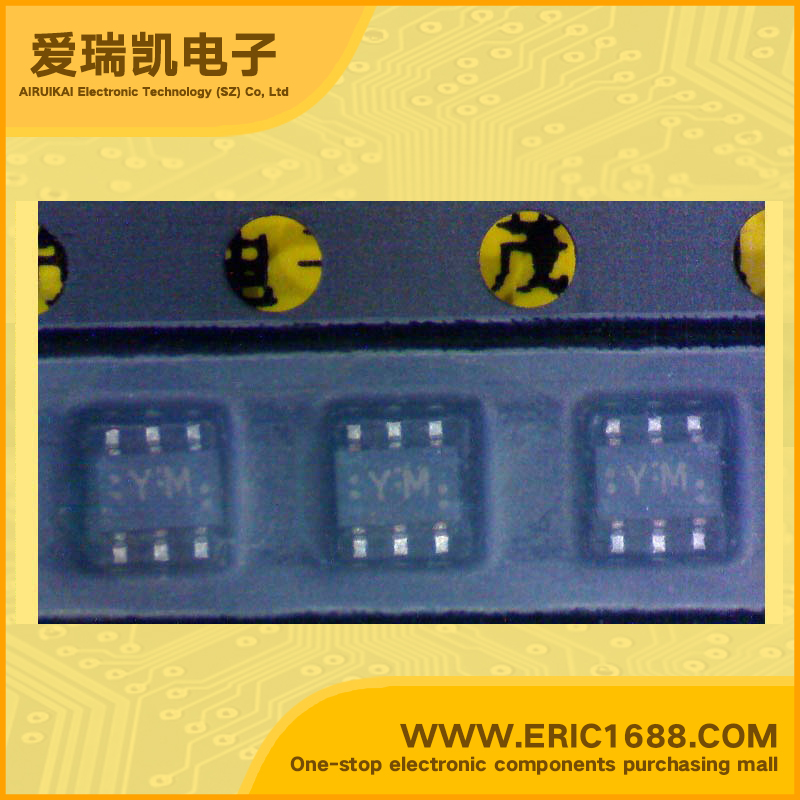

Mark / screen / code / typing：YM
Manufacturer：
Date Code：06+3KROHS 12+27KROHS
Package：SOT-363/US6/SC70-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA/-0.1A
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)	120~400
Transtion Frequency(fT)	250mhz
Power Dissipation （Pd）	0.2W
Description & Applications	TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Including two devices in US6 (ultra super mini type with 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
RN2911FE PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120~400 R1=10KΩ 100mW/0.1W SOT-563/ES6 marking YM switching inverting interface driver circuit	RN2911FE Mark：YM Package：SOT-563/ES6	-	Batch number：10+ROHS 12+32krohs	87900 Min Order:10
RN2962 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=50 R1=R2=10KΩ 200mW/0.2W SOT-363/US6/SC70-6 marking YYB switching inverting interface driver circuit	RN2962 Mark：YYB Package：SOT-363/US6/SC70-6	-	Batch number：05+ 05+	2600 Min Order:10
RN2963FS PNP+PNP Complex Bipolar Digital Transistor -20V -50mA HEF=100 R1=R2=22KΩ 50mW SOT-963/FS6 marking H5 switching inverting interface driver circuit	RN2963FS Mark：R2 Package：SOT-963/FS6	-	Batch number：05+NOPB5K 05+NOPB5K	11000 Min Order:100
RN2964FE PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=80 R1=R2=47KΩ 100mW/0.1W SOT563 marking YYD switching inverting interface driver circuit	RN2964FE Mark：YYD Package：SOT563	-	Batch number：05+ 05+	2000 Min Order:10
RN2964FS PNP+PNP Complex Bipolar Digital Transistor -20V -50mA HEF=120 R1=R2=47KΩ 50mW SOT-963/FS6 marking R3 switching inverting interface driver circuit	RN2964FS Mark：R3 Package：SOT-963/FS6	-	Batch number：05+ 05+	1200 Min Order:100
RN2968 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 80 200mW/0.2W SOT-363/US6/SC70-6 marking YYI switching inverting interface driver circuit	RN2968 Mark：YYI Package：SOT-363/US6/SC70-6	-	Batch number：05+ 05+	117000 Min Order:10
RN2971FE PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120~400 R1=10KΩ 100mW/0.1W SOT-563/ES6 marking YYM switching inverting interface driver circuit	RN2971FE Mark：YYM Package：SOT-563/ES6	-	Batch number：05+NOPB 03+NOPB	3000 Min Order:10
