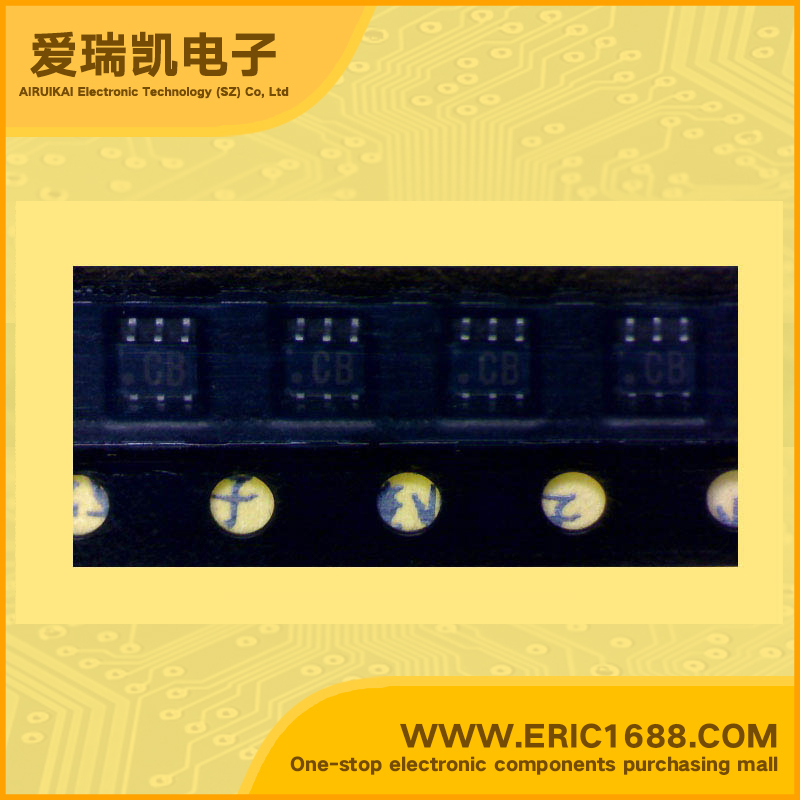

XP4315 NPN+PNP Transistors with built-in resistor 50V 0.1A R1=10KΩ SOT-363/SC-88 marking CB switch and digital circuit application
| Q1 Collector-Base Voltage(VCBO) | 50V |
| Q1Collector-Emitter Voltage(VCEO) | 50V |
| Q1 Collector Current(IC) | 100MA |
| Q2 Collector-Base Voltage(VCBO) | -50V |
| Q2Collector-Emitter Voltage(VCEO) | -50V |
| Q2Collector Current(IC) | -100MA/-0.1A |
| Q1 Input Resistance(R1) | 10KΩ |
| Q1Base-Emitter Resistance(R2) | |
| Q1(R1/R2) Q1 Resistance Ratio | |
| Q2 Input Resistance(R1) | 10KΩ |
| Q2Base-Emitter Resistance(R2) | |
| Q2(R1/R2) Q2 Resistance Ratio | |
| DC Current Gain(hFE) Q1/Q2 | 160~460 / 160~460 |
| Transtion Frequency(fT) Q1/Q2 | 150MHZ /80MHZ |
| Power Dissipation | 150MW/0.15W |
| Description & Applications |
Silicon NPN epitaxial planer transistor (Tr1)
Silicon PNP epitaxial planer transistor (Tr2)
Two elements incorporated into one package.
(Transistors with built-in resistor)
UNR1215(UN1215) + UNR1115(UN1115)
|
