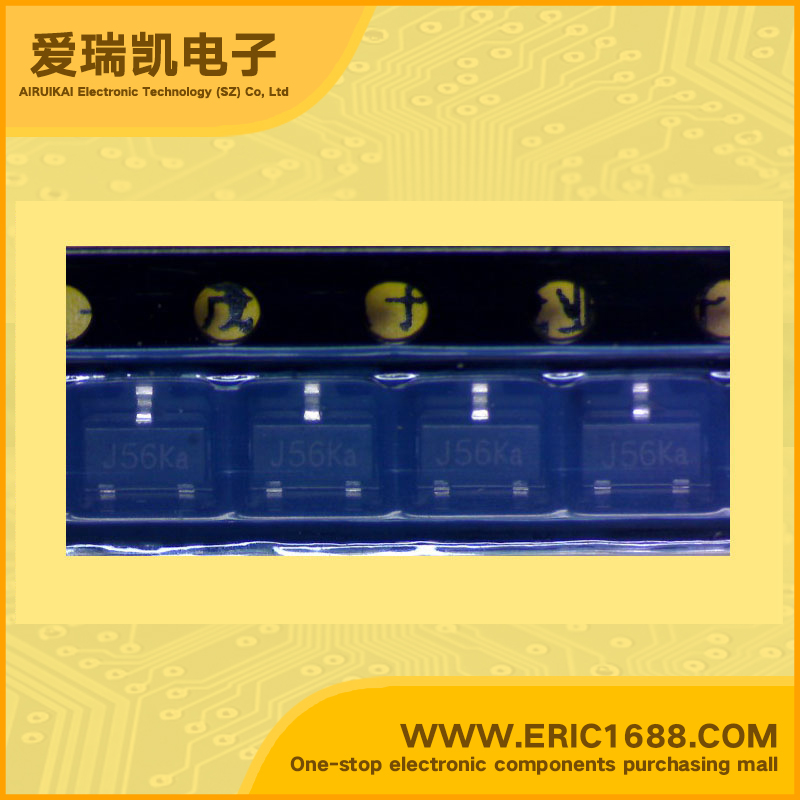

HALL IC AH175-WLA SOT-23 marking J56

Hot selling goods

Product description
感应范围
Sensing Range
15G跳闸,-60G释放 15G Trip,-60G Release
类型
Type
霍尔效应开关 Hall Effect Switch
电源电压
Voltage - Supply
20V
电源电流
Current - Supply
6mA
输出电流
Current - Output (Max)
25mA
Description & ApplicationsChopper-Stabilized Hall Effect Latch The A3282 Hall-effect sensor is a temperature stable, stress-resistant latch. Superior high-temperature performance is made possible through an Allegro® patented dynamic offset cancellation that utilizes chopper-stabilization. This method reduces the offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. The A3282 complements the current Allegro family of chopper-stabilized latching sensors. The A3282 includes the following on a single silicon chip: voltage regulator, Hallvoltage generator, small-signal amplifi er, chopper stabilization, Schmitt trigger, and a short circuit protected open-drain output. Advanced BiCMOS wafer fabrication processing is used to take advantage of low-voltage requirements, component matching, very low input-offset errors, and small component geometries. This device requires the presence of both south and north polarity magnetic fi elds for operation. In the presence of a south polarity fi eld of suffi cient strength, the device output latches on, and only switches off when a north polarity fi eld of suf-fi cient strength is present. The A3282 is rated for operation between the ambient temperatures –40°C and 85°C for the E temperature range, and –40°C to 150°C for the L temperature range. The two package styles available provide magnetically optimized solutions for most applications. Package LH is an SOT23W, a miniature low-profi le surface-mount package, while package UA is a three-lead ultramini SIP for throughhole mounting. Each package is available in a lead (Pb) free version, with 100% matte tin plated leadframes. Features Bipolar Hall effect latch sensor 3.5V to 20V DC operation voltage Open collector pre-driver 25mA output sink current Chip power reverse-connection protection Operating temperature: −40°C ~ +125°C Package: SIP3, SOT23
描述与应用稳定斩波型霍尔效应锁存 A3282霍尔效应传感器的温度下稳定,耐应力锁存。出色的高低温性能可通过一个Allegro®专利的动态偏移取消利用斩波稳定。这种方法 时间偏移电压通常是由器件超模压,温度依赖,和热应力。 A3282补充目前的快板家庭斩波稳定闭锁传感器。 A3282包括以下一个单一的硅芯片上电压调节器,发电机Hallvoltage,小信号放大器,稳定斩波特性,施密特触发器, 开漏输出具有短路保护功能。先进的BiCMOS晶片加工工艺用于利用低电压要求,元件匹配,极低的输入偏移错误和小型元件几何尺寸。 该装置需要存在两者南北极性磁场领域的进行操作。在一个南极现场足量的强度,存在的 当北极领域的频谱使用费,设备输出锁存器,只有关闭科幻古强度存在。 A3282之间的额定工作环境温度-40°C和5℃下的E的温度范围内,和-40°C到150°C的L温度范围内。两种封装类型提供磁性优化的解决方案 于大多数应用。封装LH是SOT23W微型低轮廓表面贴装封装,而封装UA是通孔安装的三引脚超小型SIP。每包可在铅(Pb)免费版本,采用100% 雾锡电镀引线框架。 双极霍尔效应锁存传感器 工作电压3.5V至20V DC 集电极开路预驱动器 25mA输出灌电流 芯片电源反向连接保护 工作温度:-40°C〜+125°C 包装:SIP3,SOT23封装
