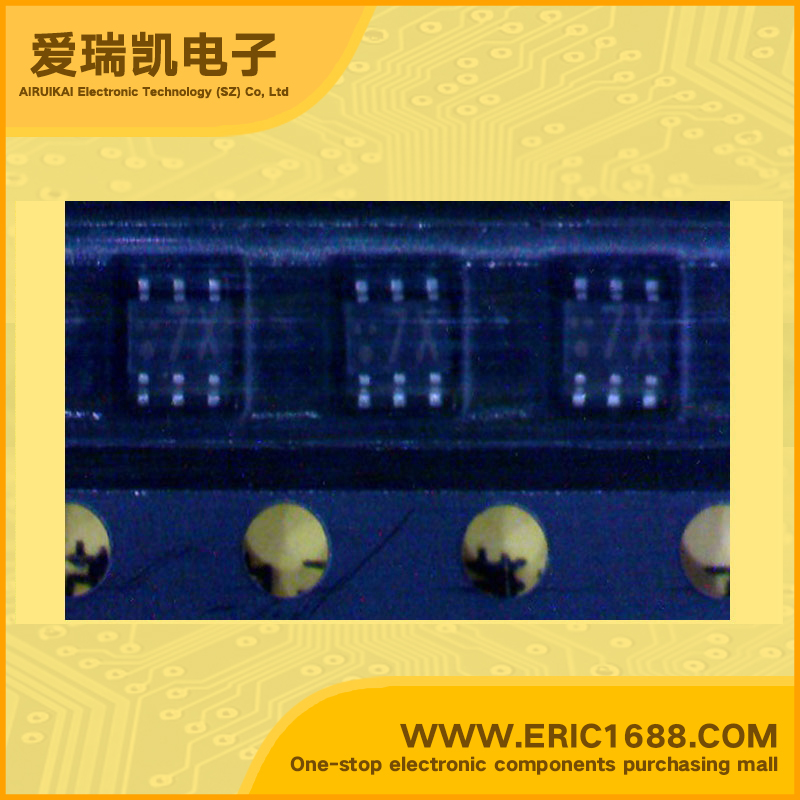

XP4311 NPN+PNP Transistors with built-in resistor 50V 0.1A R1=R2=10KΩ SOT-363/SC-88 marking 7X switch and digital circuit application

Model：XP4311
Mark / screen / code / typing：7X
Manufacturer：
Date Code：05+1rnopb 03+06NOPB5RM+2800
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Q1 Collector-Base Voltage(VCBO)	50V
Q1Collector-Emitter Voltage(VCEO)	50V
Q1 Collector Current(IC)	100MA
Q2 Collector-Base Voltage(VCBO)	-50V
Q2Collector-Emitter Voltage(VCEO)	-50V
Q2Collector Current(IC)	-100MA/-0.1A
Q1 Input Resistance(R1)	10KΩ
Q1Base-Emitter Resistance(R2)	10KΩ
Q1(R1/R2) Q1 Resistance Ratio	1
Q2 Input Resistance(R1)	10KΩ
Q2Base-Emitter Resistance(R2)	10KΩ
Q2(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE) Q1/Q2	35 / 35
Transtion Frequency(fT) Q1/Q2	150MHZ / 80MHZ
Power Dissipation	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) Two elements incorporated into one package. (Transistors with built-in resistor) UN1211+UN1111

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP4312 NPN+PNP Transistors with built-in resistor 50V 0.1A R1=R2=22KΩ SOT-363/SC-88 marking 7T switch and digital circuit application	XP4312 Mark：7T Package：SOT-363/SC-88	-	Batch number：05+ 05NOPB7RM+25500	68000 Min Order:10
XP4313 NPN+PNP Transistors with built-in resistor 50V 0.1A SOT-363/SC-88 marking BZ switch and digital circuit application	XP4313 Mark：BZ Package：SOT-363/SC-88	-	Batch number：06+NOPB1K+21KM	25800 Min Order:10
XP4314 NPN+PNP Transistors with built-in resistor 50V 0.1A R1=10KΩ R2=47KΩ SOT-363/SC-88 marking 7X switch and digital circuit application	XP4314 Mark：CA Package：SOT-363/SC-88	-	Batch number：05+	0 Min Order:10
XP4315 NPN+PNP Transistors with built-in resistor 50V 0.1A R1=10KΩ SOT-363/SC-88 marking CB switch and digital circuit application	XP4315 Mark：CB Package：SOT-363/SC-88	-	Batch number：04NOPB2500	5000 Min Order:10
XP4316 NPN+PNP Transistors with built-in resistor 50V 0.1A HEF=160~460 R1=4.7KΩ SOT-363/SC-88 marking 7U switch and digital circuit application	XP4316 Mark：7U Package：SOT-363/SC-88	-	Batch number：05+nopb5500 05+ROHS2K	3205 Min Order:10
XP4401 PNP+PNP Complex Bipolar Transistor -60V -100mA HEF=160~460 SOT-363/SC-88 marking 5K switch and digital circuit application	XP4401 Mark：5K Package：SOT-363/SC-88	-	Batch number：05+ 05NOPB4500	51700 Min Order:10
XP4501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-363/SC-88 marking 5H switch and digital circuit application	XP4501 Mark：5H Package：SOT-363/SC-88	-	Batch number：8R/NOPB 06+ROHS30300	81300 Min Order:10
