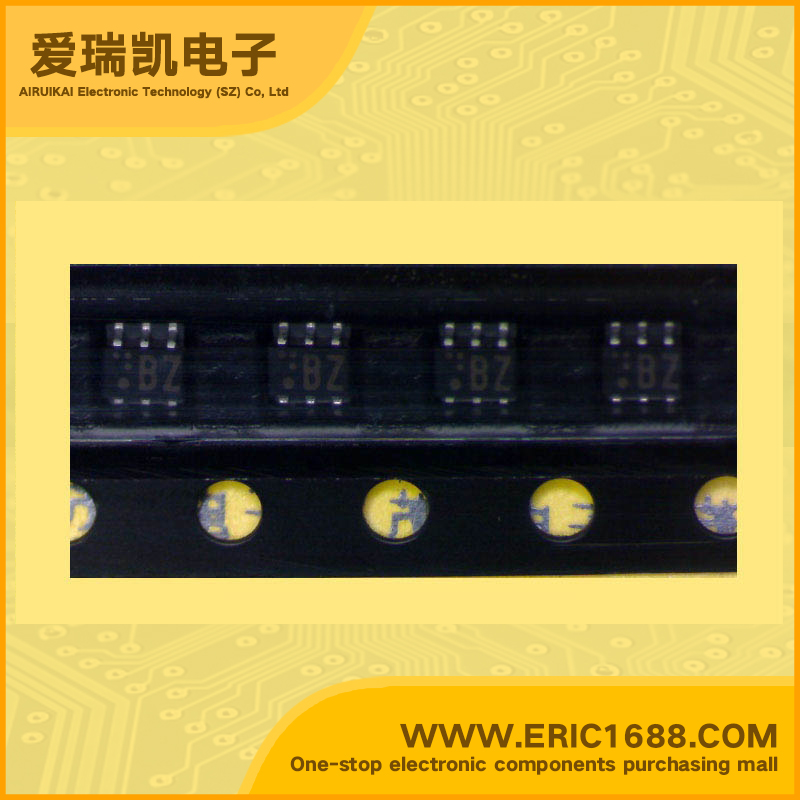

XP4313 NPN+PNP Transistors with built-in resistor 50V 0.1A SOT-363/SC-88 marking BZ switch and digital circuit application

Model：XP4313
Mark / screen / code / typing：BZ
Manufacturer：
Date Code：06+NOPB1K+21KM
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Q1 Collector-Base Voltage(VCBO)	50V
Q1Collector-Emitter Voltage(VCEO)	50V
Q1 Collector Current(IC)	100MA
Q2 Collector-Base Voltage(VCBO)	-50V
Q2Collector-Emitter Voltage(VCEO)	-50V
Q2Collector Current(IC)	-100MA/-0.1A
Q1 Input Resistance(R1)	47 KΩ
Q1Base-Emitter Resistance(R2)	47KΩ
Q1(R1/R2) Q1 Resistance Ratio	1
Q2 Input Resistance(R1)	47KΩ
Q2Base-Emitter Resistance(R2)	47KΩ
Q2(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE) Q1/Q2	80 / 80
Transtion Frequency(fT) Q1/Q2	150MHZ / 80MHZ
Power Dissipation	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) Two elements incorporated into one package. (Transistors with built-in resistor) UNR2213 (UN2213) + UNR2113 (UN2113)
